Standard Measuring Probes

TESA Axial Probes Standard Probes Universal probes for common but constraining applications.
• Measuring bolt mounted on a ball bearing
• Degree of protection IP65 according to IEC 60529
• Wide range of accessories including measuring inserts, spring sets, etc

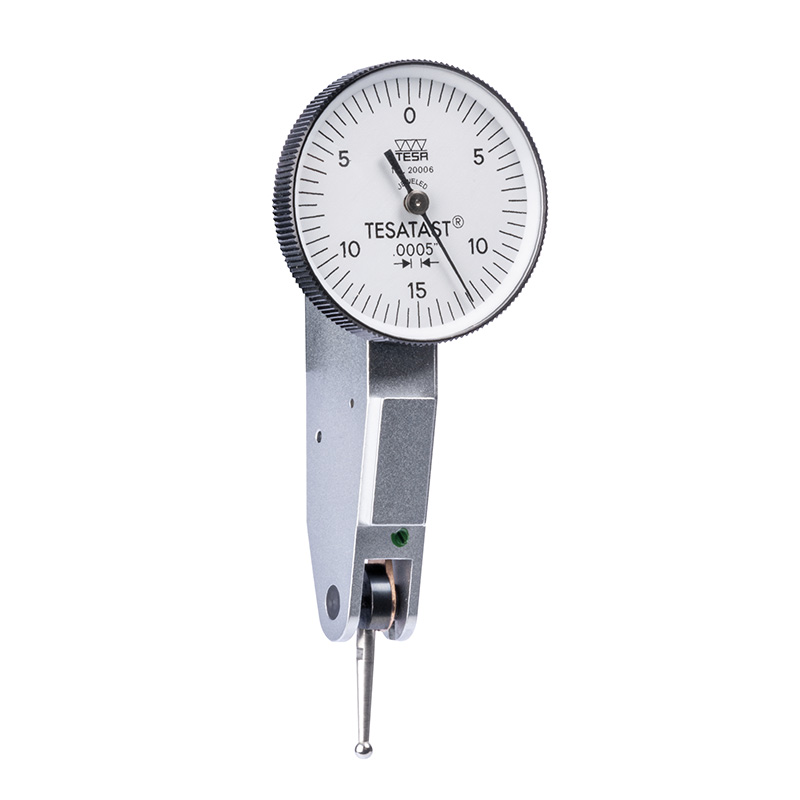

Lever-type Dial Test Indicators

These lever-type dial test indicators are especially intended for use on the shop floor or in the inspection room – Ideally suited for comparative measurements on a surface plate, for instance – Determine form, shape and position deviations as well as axial and runout errors.

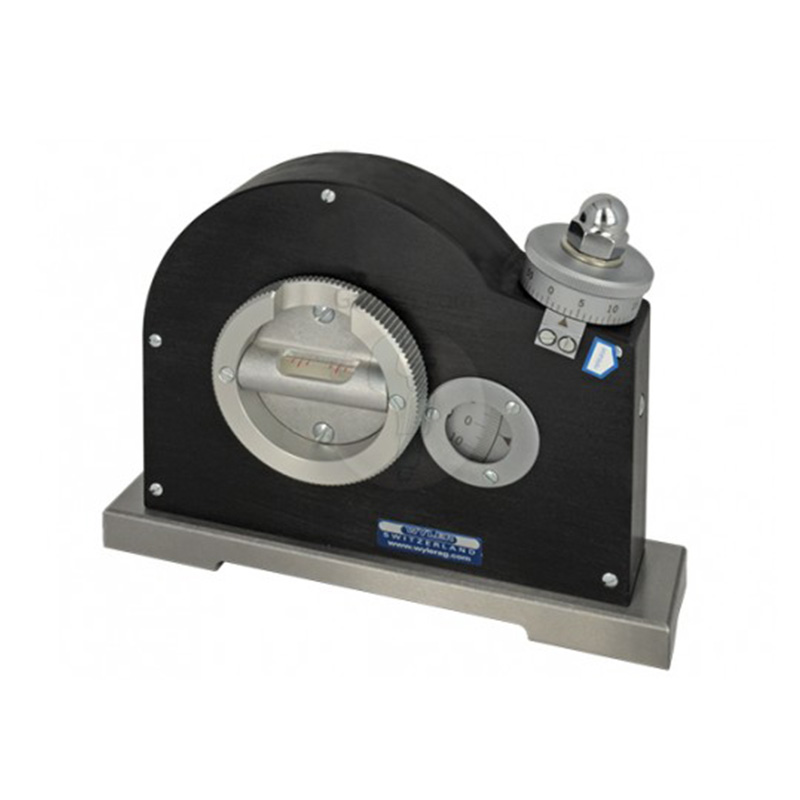

Clinometer 80

The CLINOMETER 80 is particularly suitable for precisely measuring angular deviation in any inclination on flat surfaces and shafts (with prismatic base only). Measuring range ± 180 degrees.

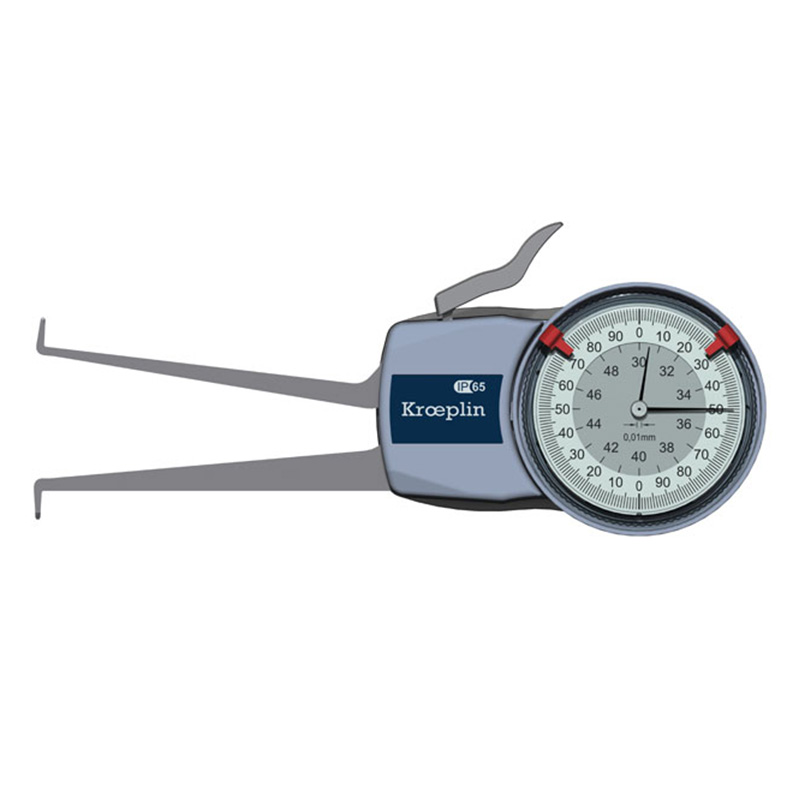

Mechanical Internal Measurements

Measuring Range possible upto 430mm.
Scale interval skw : 0,01mm.
Measuring depth Lenght upto 740mm.

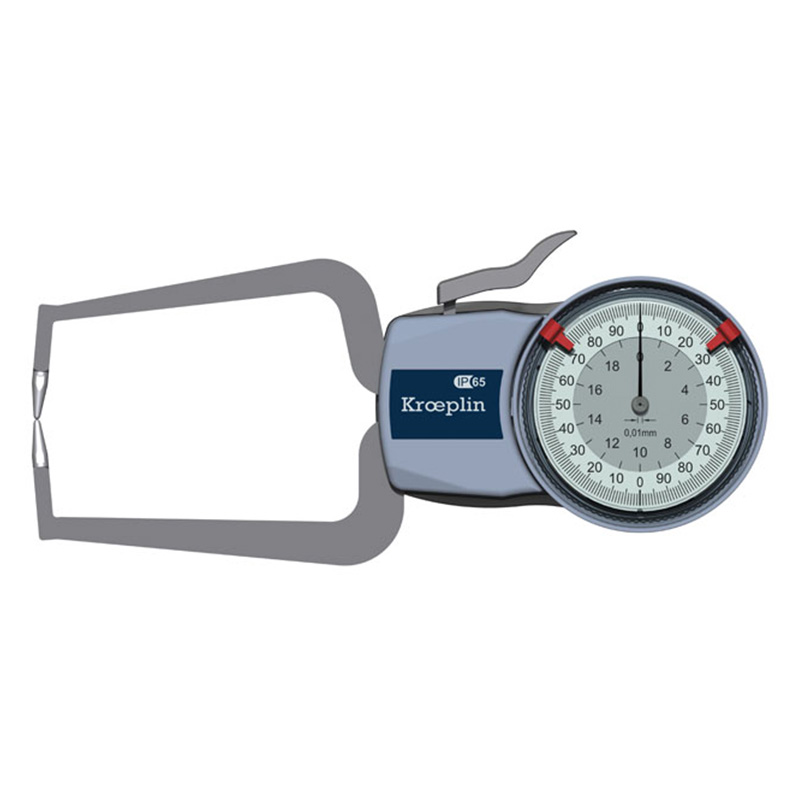

Mechanical External Measurements

Measuring Range possible upto 200mm.
Scale interval skw : 0,01mm.
Measuring depth Lenght upto 700mm.

Electronic Internal Measurements

Measuring Range possible upto 430mm.
Scale interval skw : 0,01mm.
Measuring depth Lenght upto 740mm.

Electronic External Measurements

Measuring Range possible upto 200mm.
Scale interval skw : 0,01mm.
Measuring depth Lenght upto 700mm.

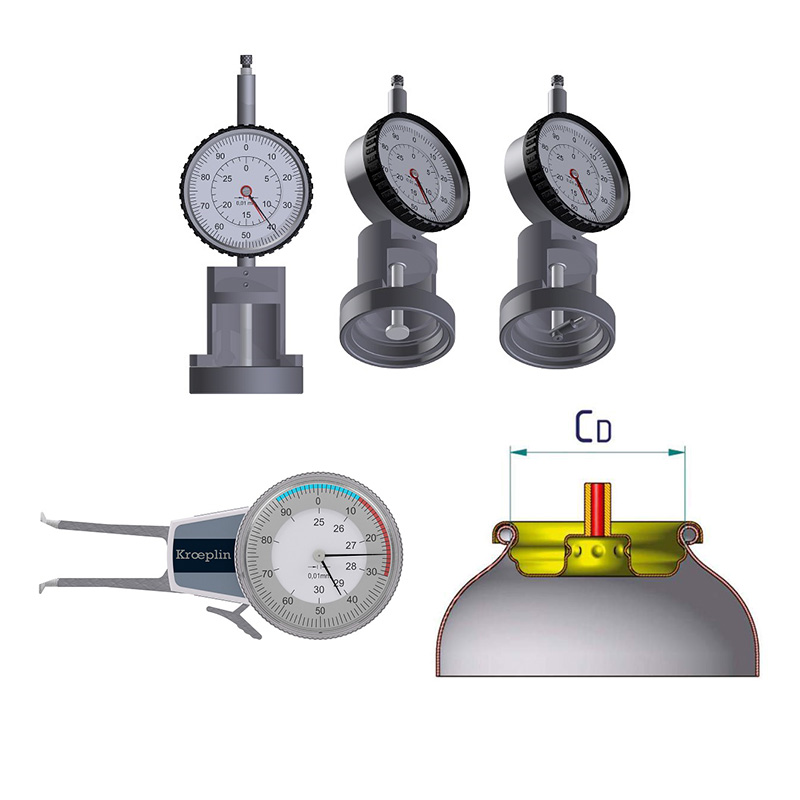

Aerosol receptacles with valves

Measurement of the Clinch Height.
Measuring Range Meb:- 4,6 – 5,4mm.
Scale Interval skw: 0,01mm.

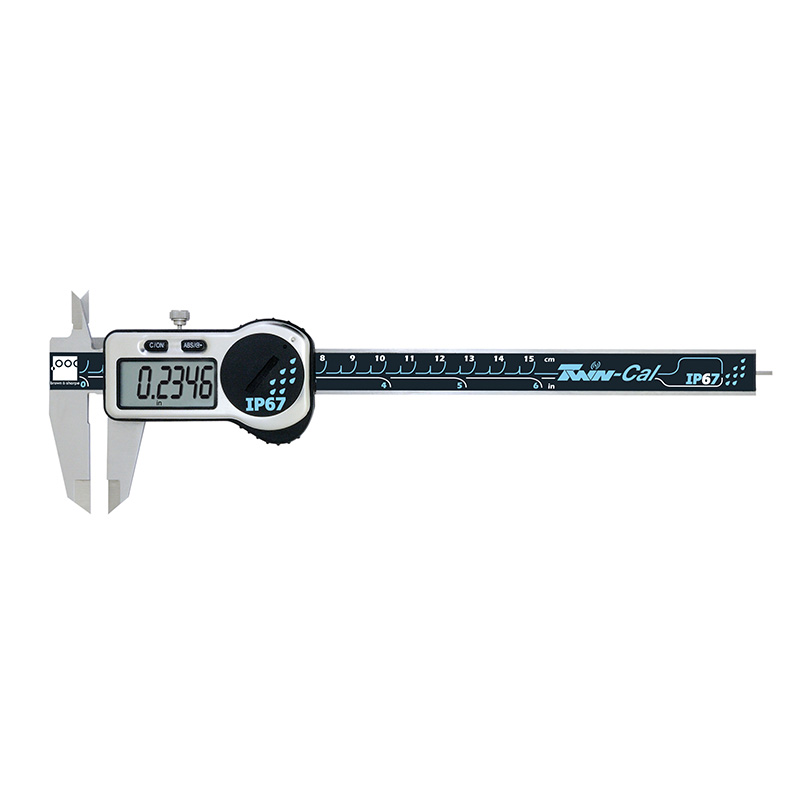

Digital Calipers IP67 & IP40

Welcome to the next generation of Brown & Sharpe electronic calipers, with the highest degree of protection ever offered. Resistant to the penetration of liquids and particles of metal or other materials. The TWIN-CAL are all equipped with the unique integral data output TLC (TESA Link Connector), providing the opportunity to upgrade at any time.

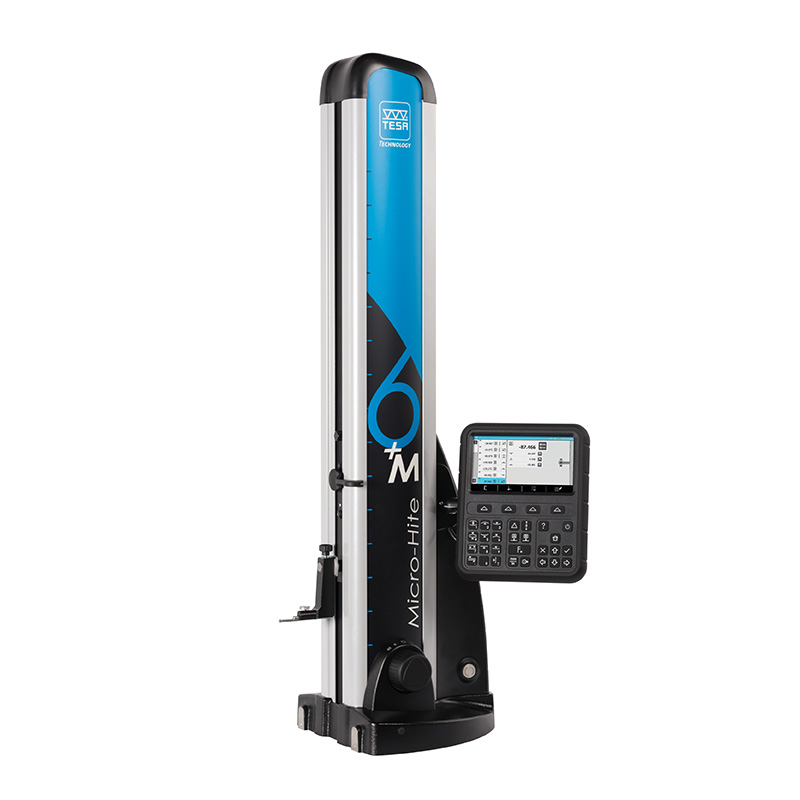

2D Digital Height Gauges / Micro Hite 350 / 600 / 900

These motorised 2D height gauges are the most precise and powerful in the TESA product range. They feature advanced functions such as statistical analysis, programming etc. They are the only height gauges on the market guaranteeing frontal as well as lateral perpendicularity (which can be measured with the option IG13). Unlike the instruments of other manufacturers, TESA height gauges are automatically delivered with a SCS (Swiss Calibration Service) certificate, which is a guarantee of expertise and optimal stability and longevity.

Outside Micrometer

Regular product of outside micrometers – The frame is provided with a heat insulating cover. Coated frame type. Large-size micrometers are also available. – Measuring range: up to 1000mm in standard specification.

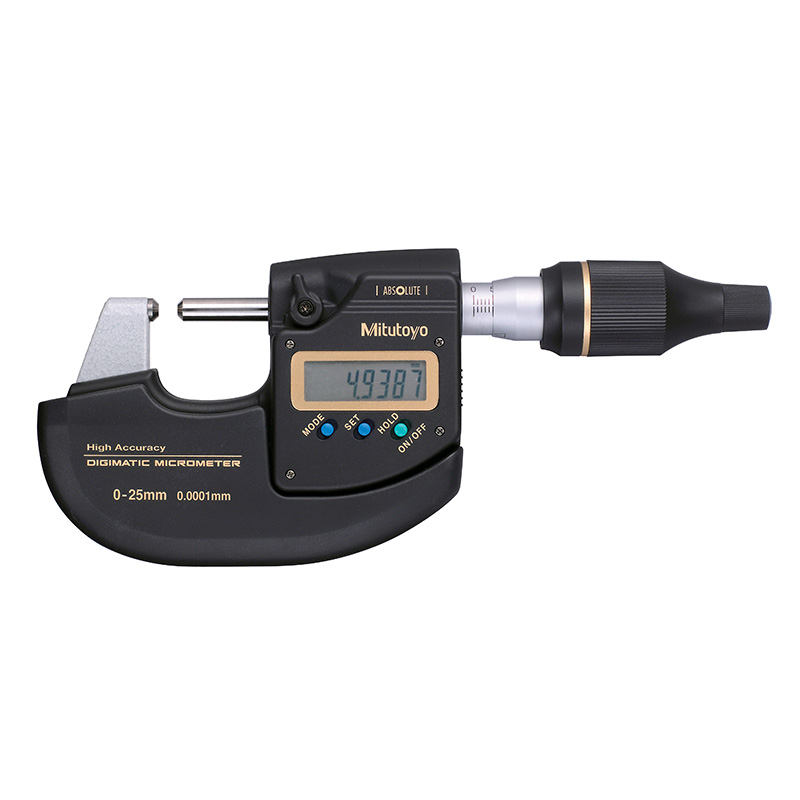

Digital Micrometer

1/1000mm graduation‚ Standard model: waterproof type – Measuring range: up to 300mm. Bigger sizes of Measuring range: more than 300mm also available.

ABS Digimatic Caliper

Abundant lineup of calipers such as models with no output and with carbide-tipped jaws. Further smooth slider surface.

Dial Calipe

Dial caliper that provides a minimum reading of 1/100mm – The titanium-coated main scale excels in durability.

Digimatic Indicator IDC

Allows arbitrary calculation compensation of spindle displacements. – Widely used for curvature measurement‚ bore diameter measurement‚ etc.

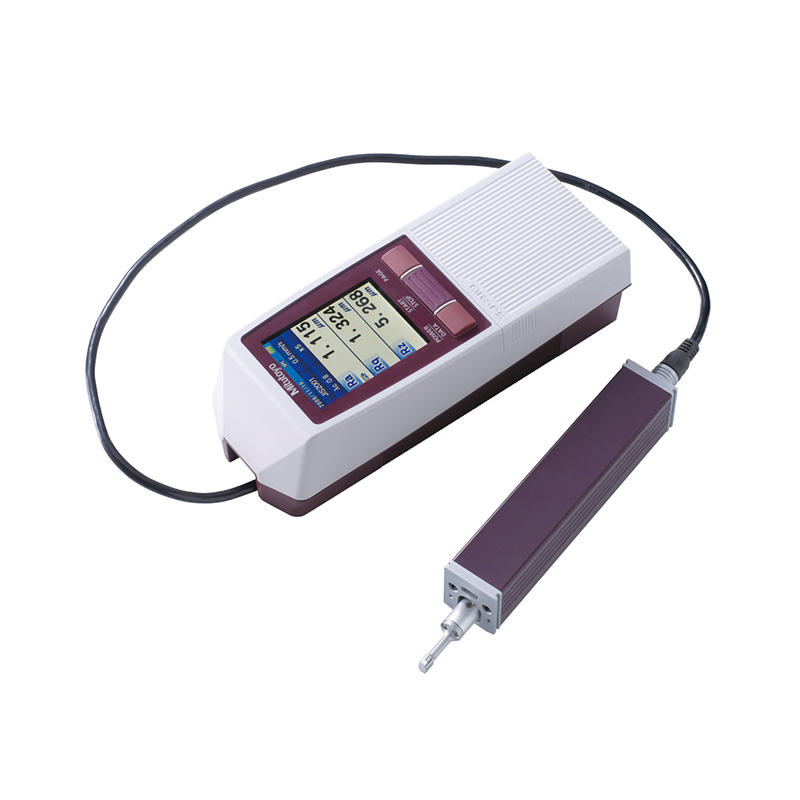

Portable Surface Roughness Tester Surftest SJ-210

Light‚ compact body and simple operation – Displays waveforms on the color LCD screens.

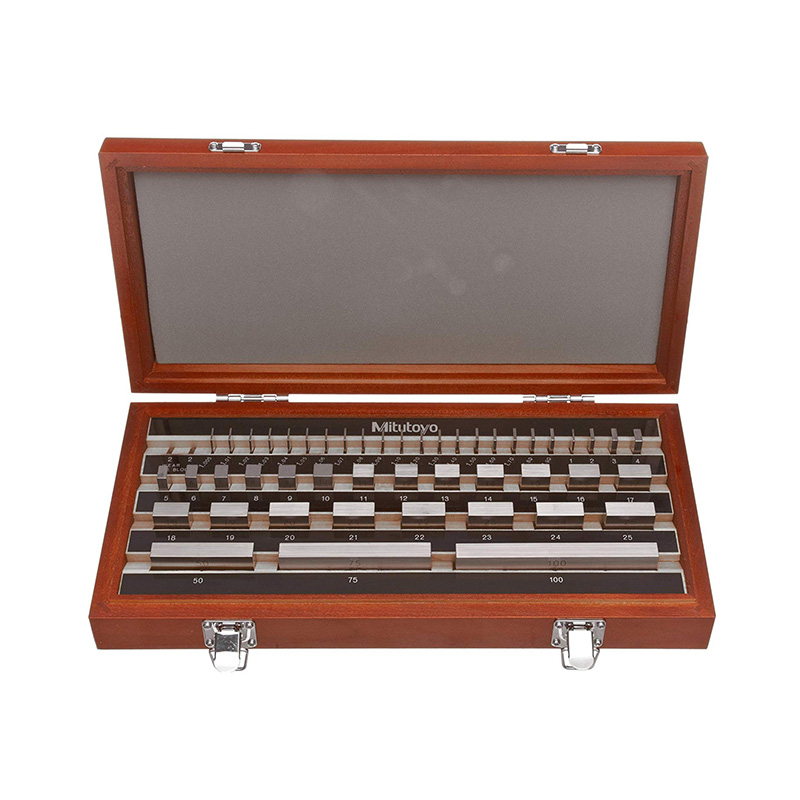

Rectangular Gauge Block Set

Practical master gauge for dimensional measurement – Two types of steel and ceramic gauge blocks are available. – Four classes of Class K‚ Class 0‚ Class1‚ and Class 2.

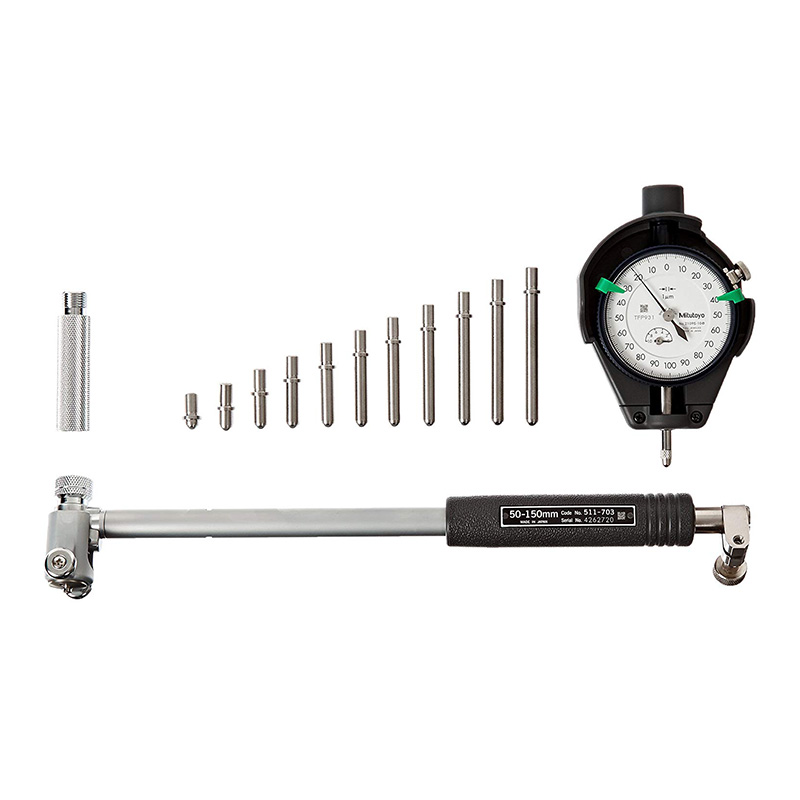

Standard Bore Gauges

Cylinder gauges for measuring inside diameters between 18 and 400mm – Covered with total 7 models (Carbide-tipped measuring faces are available.) Different models like Shallow Hole Type Bore Gauge, Bore Gauge with Micrometer Head and Small Bore Gauge which Supports measurement of small inside diameters between 0.95 and 18mm are also available.

Borematic Holtest

Allows stable measurement of inside diameters with three contact points.

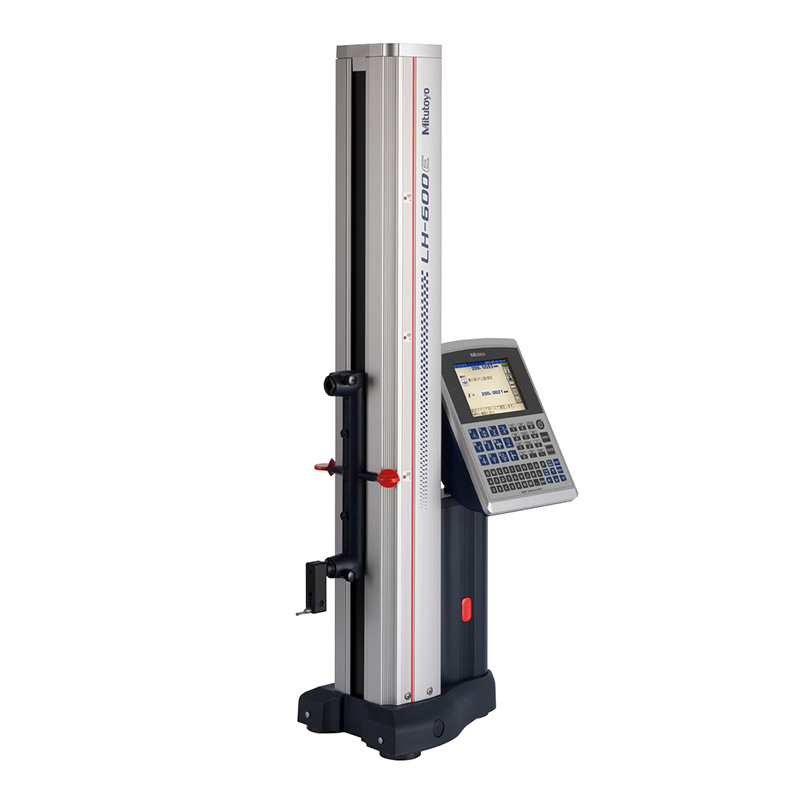

High-accuracy Height Measuring Instrument – Linear Height 2D

Extraordinarily high-accuracy and abundant measuring functions – Air-floating travel and automatic measurement. High-performance height measurement instrument with sense of height gauge.

BMD Plug

Easy-to-use, self-indicating and self-centering bore gauge for the measurement of inner- and outer diameter, with highest precision and absolute accurate results.

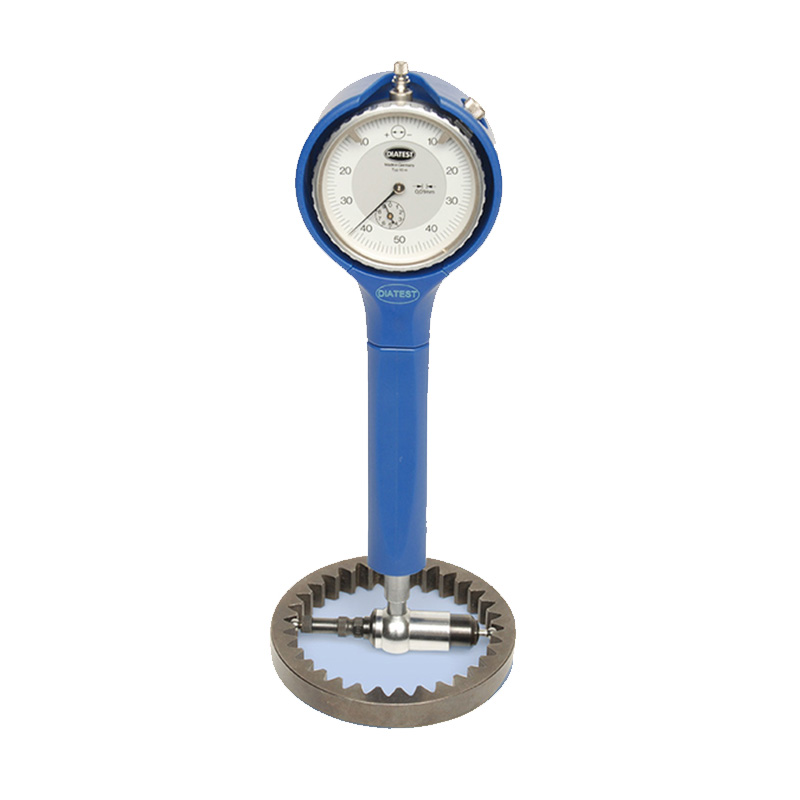

Gear Gauge

DIATEST offers solutions for internal and outer gear gauging, as hand tools or with a measuring table. They can also be used for measurement of conicity and ovality. Also applicable for spiral gears and serrations with even- or odd-numbered teeth.

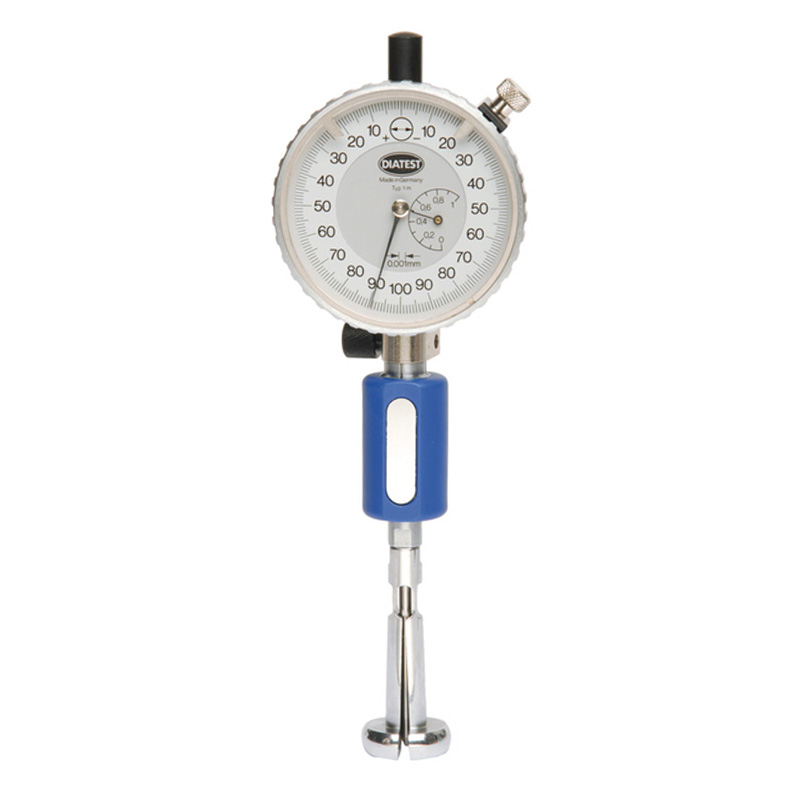

Split Ball Plug

Split-ball probes are flexible and universal bore gauges for indicating internal measurements.

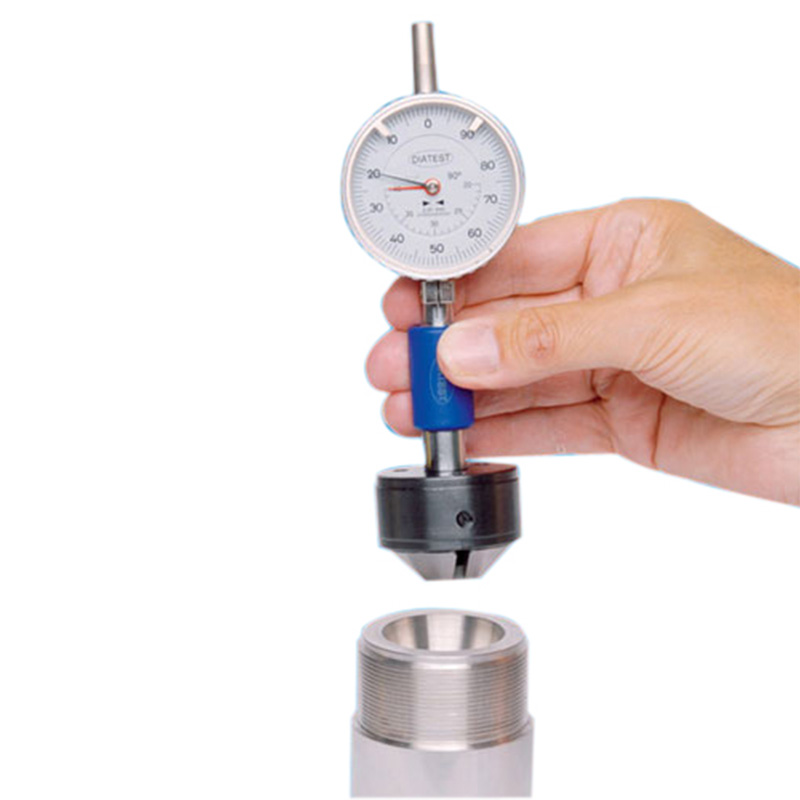

Chamfer Gauge

Indicating measuring instruments for diameter measurement of conical bores, external cones or 45° chamfers.

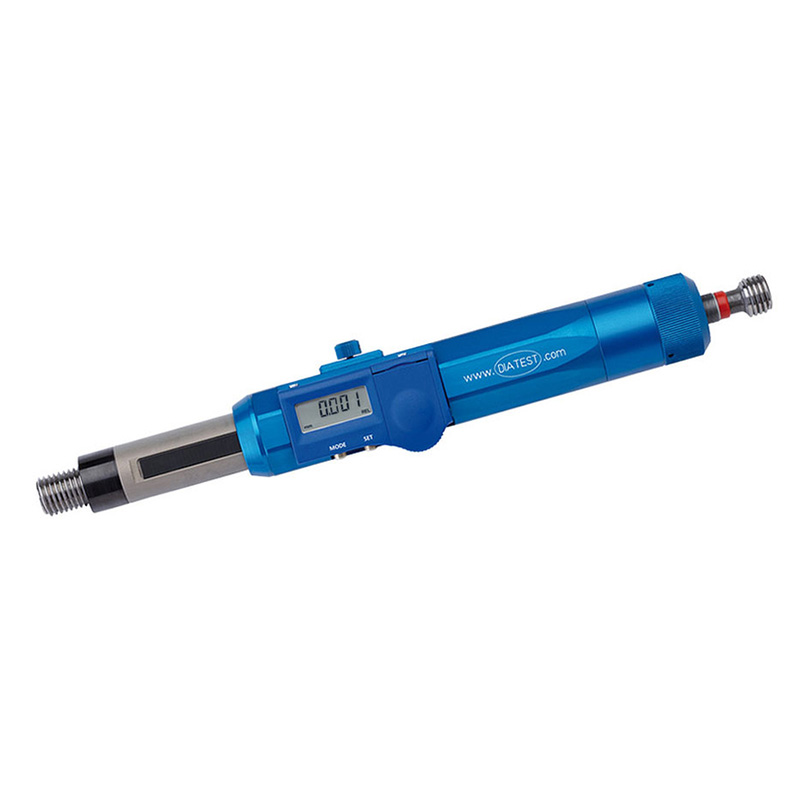

Digital TD-Gauge

Both solutions measure two values at the same time: Both measure the depth, but whereas one measures the inner diameter, the other one detects No-Go gauges in cylinder bores or threads. Resolution switchable between 0.01 and 0.001mm.

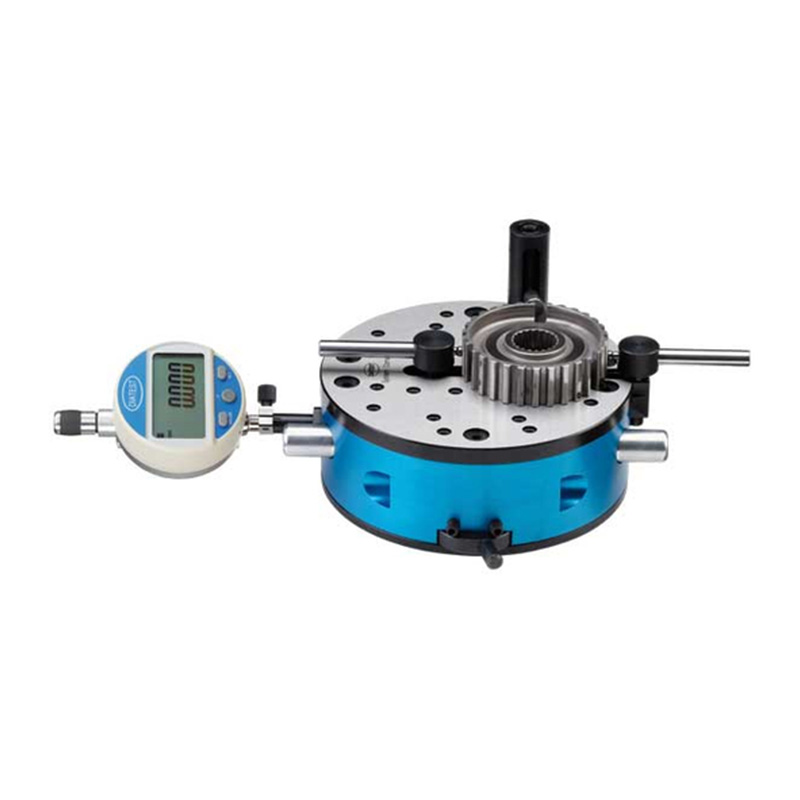

DIA COME

Flexible and sturdy measuring tables for measurement of I.D. and O.D. DIA-COME measuring tables are offered in different sizes, layouts and measuring ranges. e.g. for Measurement of samples.
